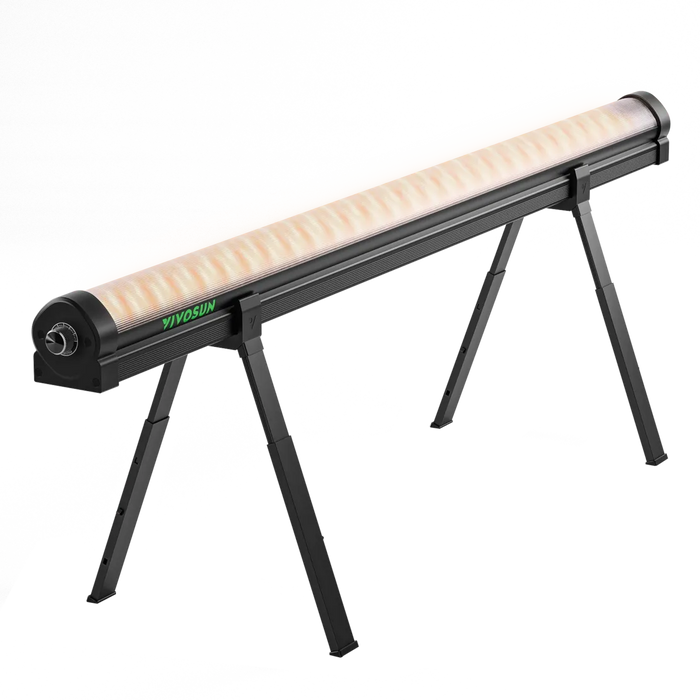

LumaRay Under Canopy LED Grow Light 100W

LumaRay Under Canopy LED Grow Light 100W for Improved Indoor Light Penetration and Plant Development

The LumaRay Under Canopy 100W system is designed to enhance indoor plant growth by delivering targeted illumination beneath the main canopy. As a dedicated supplemental lighting solution, it improves light penetration into shaded and lower plant zones, supports photosynthesis efficiency, and promotes more balanced plant development from top to bottom.

With a red-enhanced full spectrum output, SGS smart system compatibility, and flexible mounting design, this under canopy lighting system helps maximise canopy efficiency while supporting stronger flowering and fruiting performance throughout the full growth cycle.

Grow Tent Lower Canopy Lighting for Multi-Layer Plant Coverage

This lower canopy lighting solution is designed to reach shaded plant areas that overhead lighting cannot fully penetrate. It helps reduce uneven growth, improves light distribution across multiple plant layers, and supports stronger structural development inside grow tents and greenhouses.

Supplemental Plant Lighting for Yield Boost and Canopy Balance

As supplemental plant lighting, this system helps increase usable light exposure across mid and lower foliage. It supports more consistent growth patterns, improves canopy balance, and contributes to higher yield potential during full-cycle indoor cultivation.

Red Spectrum Grow Light Bars for Flowering and Fruiting Support

The red-enhanced full spectrum design (600–700nm with 60% red output) supports flowering transition and fruit development. This spectrum helps stimulate blooming response, improves bud formation, and enhances overall productivity in fruiting and flowering plants.

SGS Smart Grow System Compatible LED Lighting with App-Based Control

Compatible with the VIVOSUN SGS system via E42A+ or E25 controllers (sold separately), this smart LED lighting system allows full app-based control. Growers can automate schedules, adjust dimming from 25% to 100%, and synchronise with other SGS devices for complete grow environment management.

Energy Efficient LED Grow Bar with Uniform Light Distribution

Built with high-efficiency LED technology and a precision prism optical lens system, this grow bar ensures even light distribution across the canopy. It improves light consistency, reduces glare, and supports stable plant development in controlled indoor environments.

Flexible Under Canopy Installation System for Grow Tents and Greenhouses

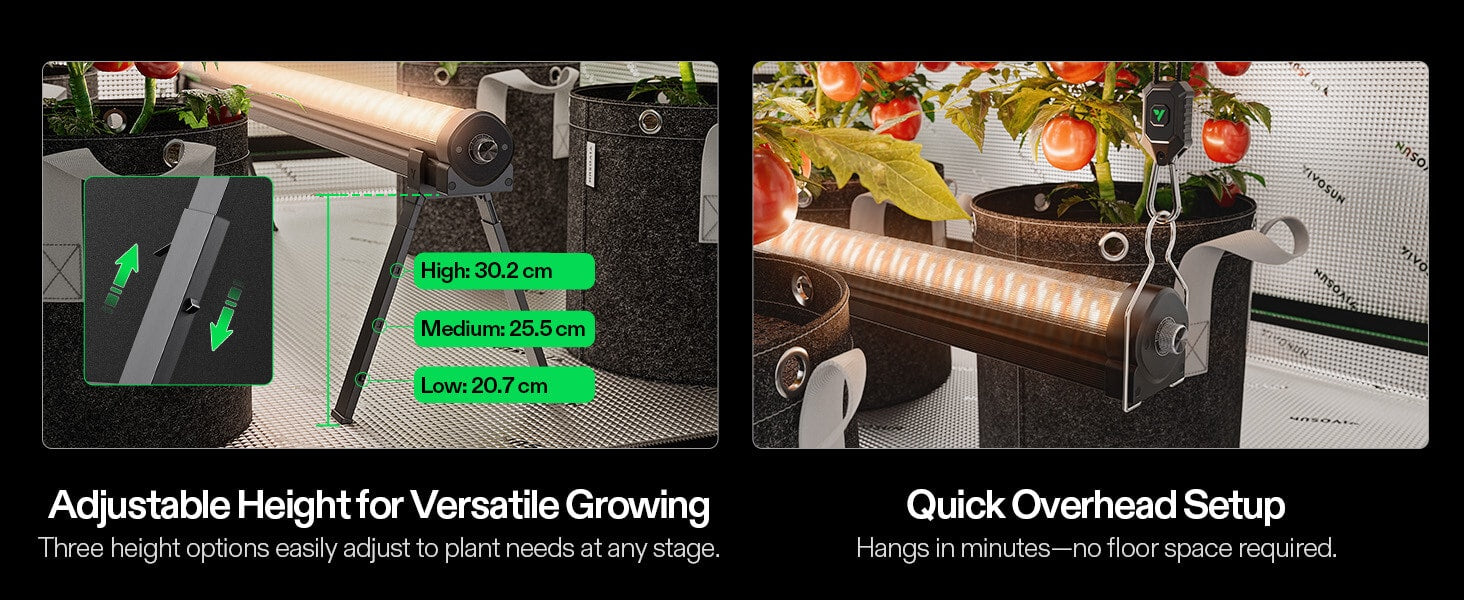

The 100W bar design allows easy installation inside grow tents and greenhouse setups. It can be mounted using magnetic clamps with adjustable height positions, and supports RJ11 daisy-chain connections for expanded lighting configurations.

IP54 Rated Indoor Plant Lighting for Humid Growing Environments

With an IP54 rating, this indoor plant lighting system is built for humid cultivation conditions. It can handle routine cleaning and nutrient spraying while maintaining consistent performance and long service life.

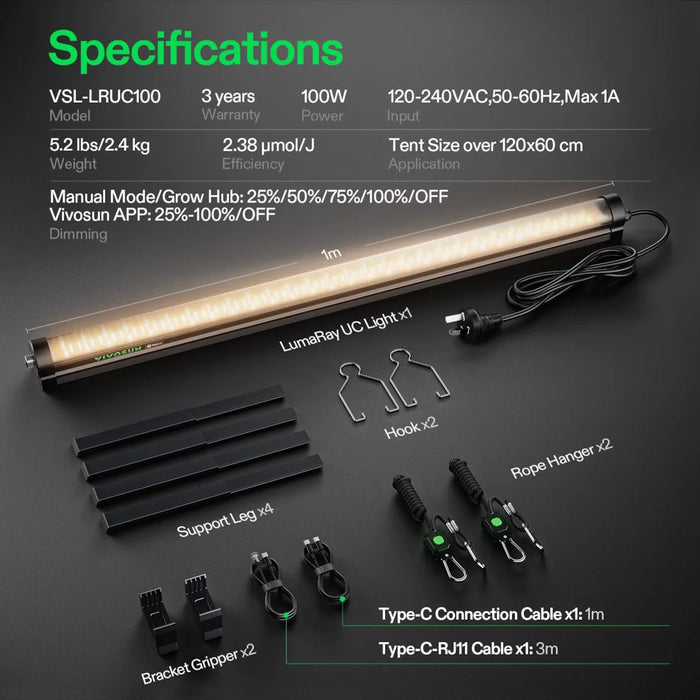

LumaRay Under Canopy 100W Specifications

• Model Name: LumaRay Under Canopy 100W
• Wattage: 100W
• Spectrum: Full Spectrum (red-enhanced 60%)
• Efficiency: 2.38 μmol/J
• Dimming: 25% / 50% / 75% / 100% / OFF
• Control: SGS Compatible (E42A+ / E25)
• Input Voltage: 120–240VAC, 50–60Hz
• Waterproof Rating: IP54
• Lifespan: 25,000 hours
• Dimensions: 39.4 x 2.5 x 2.8 in
• Weight: 3.8 lbs
• Power Cord Length: 8.3 ft (2.5m)

For installation steps, dimming setup, and full operating instructions, you can refer to the official instruction manual below.

View Instruction Manual
